Floor Underlays

Trojan White foam underlay is manufactured from polyethylene which is 100% recyclable. It is suitable for laminate or a parquet flooring in a domestic installation. It is a lightweight foam that is easy to lay, levels unevenness and can be used in conjunction with a polythene sheet to provide a mositure barrier.
- Easy to lay
- Levels unevenness
- Suitable for laminate & parquet flooring
- Used in conjunction with a polythene sheet for moisture barrier
- Recyclable

Code	Description	Pallet Qty.
040305	Trojan Foam Underlay 3mm x 1 x 15m2	70
FU252	Trojan Foam Underlay 2mm x 1m x 25m2	60


Trojan Alufoil underlay is manufactured from polyethylene with a silver foil moisture barrier attached. It is suitable for laminate or a parquet flooring in a domestic installation. It is a lightweight foam that is easy to lay, levels unevenness and is deal for impact, sound and vapour reduction.
- Easy to lay
- Impact sound reduction 18db
- Tog rating 0.70
- Suitable for underfloor heating
- Vapour barrier and thermal insulation
- Levels unevenness in the subfloor

Code	Description	Pallet Qty.
041937	Trojan Alufoil Silver Underlay 3mm x 1.1m x 13.64m (15m2)	30


Trojan Softboard is 100% a natural product. It contains no dangerous substances and is stress-free, it also is suitable for sound reduction and insulating. Softboard compensates unevenness up to 4 mm thanks to
the extremely flexible wood fibers, It is ideal for a renovation project or a new development.
- Easy to lay
- Environmentally friendly
- Levels unevenness in the subfloor
- Impact sound reduction 18db
- Tog rating 1.10

Code	Description	Pallet Qty.
TU5.5	Trojan Softboard Underlay 5mm (10m2)	36


Trojan Sountech foil back underlay is a high density acoustic insulation which is manufactured from natural rubber with integrated fleece and ALU vapour barrier. It is suitable for use under laminate floors, semi solid & engineered wood flooring and is ideal for apartments, bedrooms and attic conversions etc where noise is a concern. Excellent impact sound and airborne noise insulation.
- Easy to lay
- Impact sound reduction 23db
- Tog rating 0.80
- Suitable for underfloor heating
- Vapour barrier and thermal insulation
- Levels unevenness in the subfloor

Code	Description	Pallet Qty.
TRU	Trojan Soundtech Foil Back Rubber Underlay 2mm x 1m x 10m2	35


Trojan Silent Blue underlay is a lightweight high density EVA foam, we recommend to use in conjunction with Trojan Vapour Barrier for high moisture sub-floor. Trojan Silent Blue Plus is attached to a blue vapour barrier with adhesive strip seals the joints to ensure a proper seal from vapour. Both are suitable for laminate, semi-solid and engineered flooring and for underfloor heating systems. Walking noise reduction is approximately 14% and 22db impact sound reduction, ideal for rooms with heavy traffic. Both the Silent Blue and Silent Blue Plus are suitable for underfloor heating systems.
- Easy to lay
- Lightweight high density EVA foam
- Non Toxic
- Provides a cushion between the flooring and the sub-floor
- Overcomes most sub-floor imperfections
- Superior fast traffic sound control
- Impact sound reduction 22db
- Tog rating 0.88

Code	Description	Pallet Qty.
TSU	Trojan Silent Blue Underlay 3mm x 1m x 15m2	30
TSUP	Trojan Silent Blue PLUS Underlay c/w Foil S/A Tape 3mm x 1m x 15m2	30


Trojan Acoustic Gold is a high quality underlay, made from strong, high density cross-linked foam attached to a gold vapour barrier and has a 98% memory retention. This underlay enhances long term performance and offers good insulation. Adhesive strips seal the joints to ensure a proper seal from vapour and it is suitable for underfloor heating systems. It provides a walking noise reduction of approximately 14% and impact sound reduction of 22db. It is ideal for rooms with heavy traffic.
- Easy to lay
- High density cross-linked foam
- 98% memory foam retention
- Adhesive strip seal for joints
- Impact sound reduction 22db
- Tog rating 0.88
- Suitable for underfloor heating
- Vapour barrier and thermal insulation
- Levels unevenness in the subfloor

Code	Description	Pallet Qty.
041947	Trojan Acoustic Gold Underlay S/A Tape 3mm x 1m x 13.64m (15m2)	30

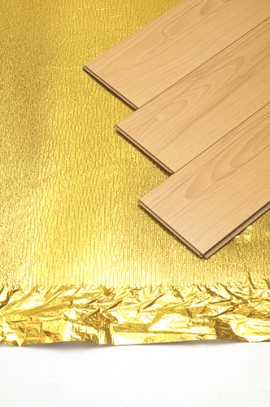

Trojan Eco Gold underlay is manufactured from polyethylene with a gold foil moisture barrier attached. It is suitable for laminate or a parquet flooring in a domestic installation. It is a lightweight foam that is easy to lay, levels unevenness and is deal for impact, sound and vapour reduction.
- Suitable for underfloor heating
- High density foam for enhanced compressive resistance
- Gold aluminium foil vapour control barrier
- Adhesive strip seals the joints to ensure a proper seal for vapour
- Impact sound reduction 3mm=20db, 4mm=21db & 5mm=22db
- Simple, quick and easy to install
- Absorbs minor floor imperfections

Code	Description	Pallet Qty.
040299	Trojan Eco Gold Underlay S/A Tape 3mm x 1.1m x 13.64 (15m2)	30
040289	Trojan Eco Gold Underlay 4mmx1.1mx13.64m (15m2) s/a tape	30
040282	Trojan Eco Gold Plus Underlay S/A Tape 5mm x 1.1m x 13.64m (15m2)	20


The perforated structure of the Trojan Heatmate underlay is unique and facilitates the transmission of heat. With Heatmate underlay you are sure to reach top efficiency of your flooring heating system. This low tog (0.35 Togs) underlay is designed for underfloor heating. Thermal resistance is RB=0.035m2K/W which means that the tog rating will be 0.35 togs. It is recommended that the heat transmission resistance of flooring and underlay must not exceed a value of RB= 0.15 m2K/W. This means that the thinner the engineered or laminate floor the better the transfer of heat. Trojan Heatmate underlay ensures sound reduction of your flooring. Impact and drrum sound are reduced. Density of the EVA foam in Heatmate underlay is 30kg/m3. Ideal for rooms with heavy traffic. We recommend to use in conjunction with Trojan Vapour Barrier for high moisture sub-floor.
- Easy to lay
- Suitable for underfloor heating
- Perforated structure for heat transmission
- Impact sound reduction 20db
- Tog rating 0.35
- Absorbs minor floor imperfections

Code	Description	Pallet Qty.
041101	Trojan Heatmate Perforated Underlay 2mm x 1m x 12.5m2	30


Trojan Traffic Pro is a lightweight EVA foam with PE foil. Suitable for laminate, semi-solid and engineered flooring. Thermal resistance is RB=0.088m2K/W which means that the tog rating will be 0.88togs. For underfloor heating systems it is recommended that the heat transmission resistance of floor underlay must not exceed a value of RB=0.15m2K/W. Adhesive strip seals the joints to ensure a proper seal
for vapour. Walking noise reduction is approximately 14% impact sound reduction 23db. Density of the Pro Traffic underlay is 40kg/m3. Ideal for rooms with heavy traffic.
- Lightweight EVA foam with PE Foil
- Suitable for underfloor heating
- Impact sound reduction 23db
- Tog rating 0.88
- Absorbs minor floor imperfections
- Adhesive strip seals the joints to ensure a proper seal for vapour
- Simple, quick and easy to install

Code	Description	Pallet Qty.
040275	Trojan Traffic Excel Underlay S/A Tape 3mm x 1.1m x 13.64m (15m2)	30

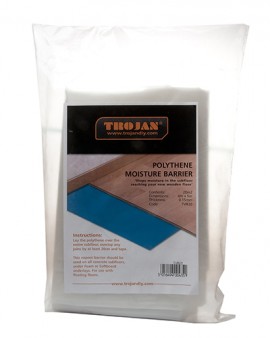

Trojan Vapour Barrier stops moisture in the subfloor reaching your new wooden floor. Lay the polythene over the entire subfloor, overlap any joins by at least 20cm and tape. This vapour barrier should be
used on all concrete subfloors, under foam or softboard underlays. For use with floating floors.

Code	Description	Pallet Qty.
TVB20	Trojan Vapour Barrier 600 Gauge 0.15mm x 4m x 5m (20m2)	N/A


The structure of the Trojan Cork underlay allows transmission of heat. It has a low tog rating of 0.40 Togs. With this underlay you are sure to reach top efficiency of your floor heating system. The thermal resistance is RB=0.040m2K/W, it is recommended that the heat transmission resistance of flooring and underlay must not exceed a value of RB=0.15m2K/W. This means that the thinner the engineered or laminate floor the better the transfer of heat. Walking noise reduction is approximately 6% impact sound reduction 17db. Density of the Cork underlay is 20kg/m3. We recommend to use in conjunction with Trojan Vapour Barrier for high moisture sub-floor.
- Suitable for underfloor heating
- Impact sound reduction 17db
- Tog rating 0.40
- Absorbs minor floor imperfections
- Simple, quick and easy to install

Code	Description	Pallet Qty.
SMA3	Cork Underlay 2mm x 1m x 10m2	35

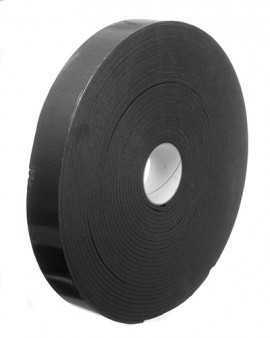

The Trojan Acoustic Batton strip is designed to reduce sound transmission through wood floors. The acoustic strip is fitted on top of exposed floor joints and fixed in place with the self adhesive backing. It is used as a separation layer between the structural floor and wood flooring and it also provides good impact sound insulation at a low thickness and absorbs floor unevenness.
­- PE-foam
- Closed cell
- Physically crosslinked, fine cell structure
- ­ Low dynamic siffness (high elasticity)
- Low Thickness, low thickness tolerances, smooth sheet with no undulation

Benefits:-
- Environmentally friendly
­- Light weight, does not deteriorate or mildew
- Easy to cut, does not crumble
- ­Good impact sound insulation
- ­Absorbs floor uneveness
- ­Easy to lay and fold
- Can be walked on during laying

Code	Description	Pallet Qty.
BS5	Acoustic Batton Strip S/A 5mm x 50mm x 20m	N/A
